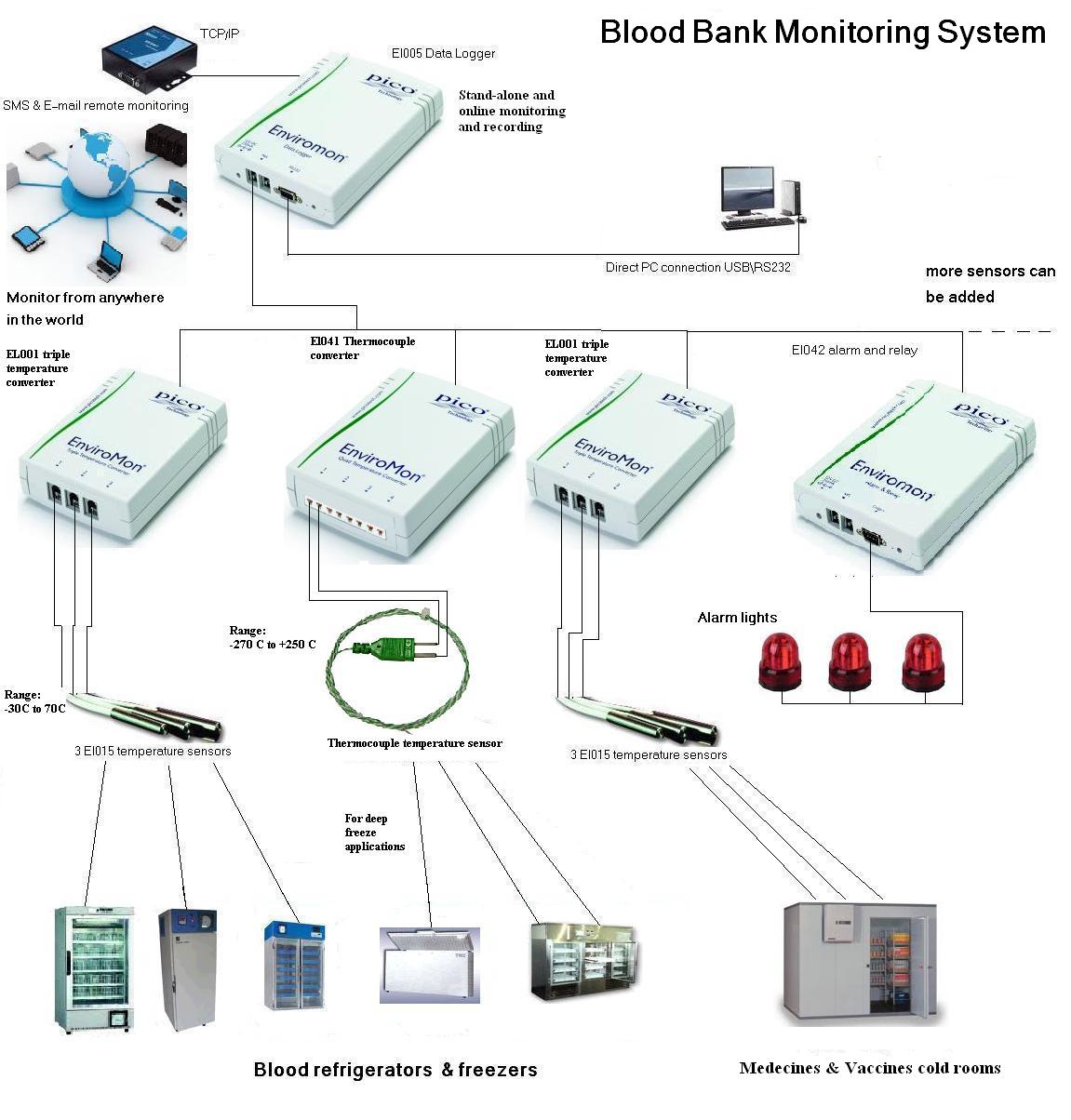

Online Blood Bank monitoring and data logging system

Specification:

Online and standalone. Data logging system with standalone storage of a minimum of 250,000 data point,

more than 160 Giga byte memory when connected to industrial HMI (Human Machine Interface).

- Network and modular hardware.

- Back up battery time: minimum 24h.

- No of zones:40.

- Measurement Temperature range -90°C to 70°C

- Accuracy + 0.3

- Resolution 0.01

- Sensor type thermocouples for freezer and precision resistor for fridges.

- Individual alarms for each zone on screen.

- Visual and Audible Alarm for each zone for high and low temperature and system fault.

- Send SMS amd E-mails alert on Alarm and when Alarm cleared via internet to unlimited number of mobiles phones and unlimited e-mail addresses.

- Software record data at interval of 1 to 240 minutes.

- Three seconds display reading minimum update time.

- Display data on a form of graphs and spreadsheet.

- Data easily transfer to Microsoft exel.



Software Specifications:

- Easily configurable to set zones names and individual alarm levels.

- Graphical interface to allow site design for identifications of each zone picture where

it is installed.

- The software should allow setting e-mail to be sent through owner own SMTP.

- load Jpeg picture format of site for sensor to be dragged on freezer and fridge.
