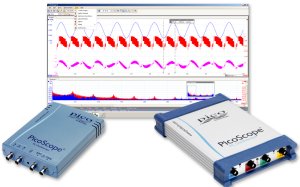

Picoscope 3000 series

PicoScope 3000 Series offers the highest performance available from any USB-powered oscilloscope on the market today.

• 2 Channels and external trigger
• 200 MHz  bandwidth
• 128 MS  buffer size
• 500 MS/s  real-time sampling
• 10 GS/s  repetitive sampling
• 200 MHz  spectrum analyser
• Built-in function generator/AWG
• USB-connected and powered

Oscilloscope - Vertical
Model	PicoScope 3204A/B	PicoScope 3205A/B	PicoScope 3206A/B
Bandwidth (-3 dB)	60 MHz	100 MHz	200 MHz
Rise time (calculated)	5.8 ns	3.5 ns	1.75 ns
Input channels	2
Vertical resolution	8 bits
Enhanced vertical resolution	12 bits
DC accuracy	±3% of full scale
Input sensitivity	10 mV/div to 4 V/div (10 vertical divisions)
Input characteristics	1 MΩ ±1% in parallel with 13 pF  ±1 pF

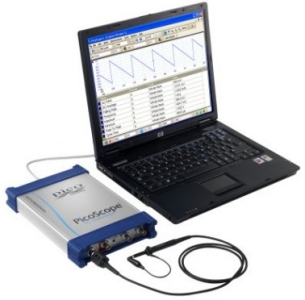

Picoscope 5200 range

Much higher bandwidth, sampling rate, memory depth and an arbitrary wave generator. All of those features make Picoscope 5200 a powerful oscilloscope that can replace the old benchtop oscilloscope and introduce you to the modern era.







• 250 MHz bandwidth
• 1 GS/s real-time sample rate
• 128 Megasample buffer memory
• Arbitrary waveform generator

Oscilloscope - Vertical
Model	PicoScope 5203	PicoScope 5204
Bandwidth (at probe tip)	250 MHz
Rise time (calculated)	1.4 ns
Input channels	2
Vertical resolution	8 bits
Enhanced vertical resolution	12 bits
DC accuracy	±3%
Input characteristics	1 MΩ in parallel with 15 pF
