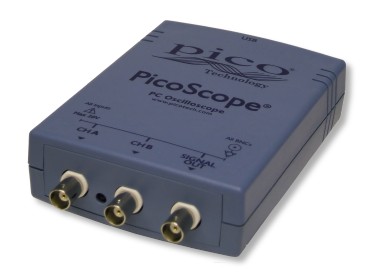

Picoscope 2200 series
The PicoScope 2200 dual-channel PC Oscilloscopes are capable of real-time sampling rates of up to 200 megasamples per second. For repetitive signals the sampling rate can be increased to as much as 4 gigasamples per second using equivalent-time sampling. These high sampling rates combined with a 16,000 sample buffer memory and 25 MHz analogue bandwidth make the PicoScope 2200 range suitable for use in a wide variety of applications.
Features:
10000 waveform buffer
Advanced triggering
Advanced zoom controls
Arbitrary waveform generator
Auto-arrange axes
Auto setup
Automated measurements
AWG editor
CMD-line file conversions
Continuous streaming mode
Custom probes
Digital persistence mode
Easy data export
Equivalent time sampling
Spectrum analyzer mode
XY oscilloscope mode
Spcifications:
| Oscilloscope - Vertical |
| Model |
PicoScope 2203 |
PicoScope 2204 |
PicoScope 2205 |
| Bandwidth |
5 MHz |
10 MHz |
25 MHz |
| Rise time (calculated) |
70 ns |
35 ns |
14 ns |
| Input channels |
2 |
| Vertical resolution |
8 bits |
| Enhanced vertical resolution |
12 bits |
| DC accuracy |
±3% |
| Input characteristics |
1 MΩ in parallel with 20 pF or less |
| Input type |
Single-ended, BNC connector |
| Input coupling |
Software selectable AC/DC |
| Input ranges (full scale) |
±50 mV to ±20 V in 9 ranges |
| Overload protection |
±100 V (DC+AC peak) |
| Oscilloscope - Horizontal |
Maximum sampling rate (single shot)
One channel in use
Two channels in use |
40 MS/s
20 MS/s |
100 MS/s
50 MS/s |
200 MS/s
100 MS/s |
| Maximum sampling rate (repetitive signals) |
1 GS/s |
2 GS/s |
4 GS/s |
Maximum sampling rate
(continuous streaming mode) |
1 MS/s (Record length limited to 2 MS in PicoScope, unlimited when using the supplied API) |
Buffer memory
One channel in use
Two channels in use |
8 kS/channel
4 kS/channel |
8 kS/channel
4 kS/channel |
16 kS/channel
8 kS/channel |
| Buffer memory (in streaming mode) |
2 M samples per channel |
| Waveform buffer |
Up to 10000 waveforms |
| Timebase ranges |
500 ns/div to 200 s/div |
100 ns/div to 200 s/div |
50 ns/div to 200 s/div |
| Timebase accuracy |
±100 ppm |

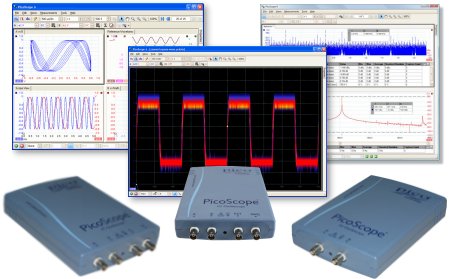

Picoscope 4000 series
High resolution oscilloscope (12 bits) suitable for general, scientific and field service use. It is suitable for measuring small signals as it can detect the slightest change. The PicoScope 4000 Series have input ranges from ±50 mV to ±100 V full-scale (±50 mV to ±20 V for the PicoScope 4224 IEPE) so you can measure small signals from sensors as well as higher voltages from power supply circuits and motor drives
| Oscilloscope - Vertical |
| Model |
PicoScope 4224
(view specifications for PicoScope 4224 IEPE) |
PicoScope 4424 |
| Bandwidth |
20 MHz (10 MHz on ±50 mV range) |
| Rise time (calculated) |
17.5 ns on all ranges except 50 mV;
35 ns on 50 mV range |
| Input channels |
2 |
4 |
| Vertical resolution |
12 bits |
| Enhanced vertical resolution |
16 bits |
| DC accuracy |
±1% |
| Input sensitivity |
10 mV/div to 20 V/div |
| Input characteristics |
1 MΩ in parallel with 22 pF |
