The following transducers and signal conditioning devices are used with Enviromon to measure a wide variety of parameters (Voltage, power, frequency, current, etc........) making Enviromon a full scale PC based measuring station.
1- Fema
ISC-VDC Voltages DC
Electrical Signals DC Voltage (VDC)
for Shunts, Batteries, Tacogenerators, ...
0/650 Vdc, 0/300 Vdc, 0/150 Vdc, 0/65 Vdc, ...
0/15 Vdc, 0/1 Vdc, 0/150 mVdc, 0/75 mVdc, ...
Accuracy - 0.3%
Response Time 70mSeg
SC-VAC Voltages AC
Electrical Signals AC Voltage (VAC)
for AC Shunts, AC Lines, AC Voltages, ...
0/650 Vac, 0/300 Vac, 0/150 Vac, 0/65 Vac, ...
0/15 Vac, 0/1 Vac, 0/150 mVac, 0/75 mVac, ...
Accuracy - 0.3%
Response Time 250mSeg
ISC-Hz Frequency
Input Signals for Frequency
Signal type NPN, PNP, Vac, ...
0/50 KHz, 0/10 KHz, 0/1 KHz, 0/500 Hz, ...
0/100 Hz, 0/60 Hz, 0/40 Hz, ...
Accuracy 0.2%
Vexc - 15 Vdc (20mA)
2- Eltime
Power (Watts & Vars)
Models are available for single phase and three phase, balanced and unbalanced loads and are available with a zero based or live zero output. Combined Watt & Var transducers are also available with two galvanically isolated outputs, one proportional to active power (Watts) and the other proportional to reactive power (Vars).Power transducers measure AC power (active, reactive or both) either directly or through voltage and/or current transformers. The transducer converts the AC power signal to either a DC mA or DC voltage output which is directly proportional to the input signal value.

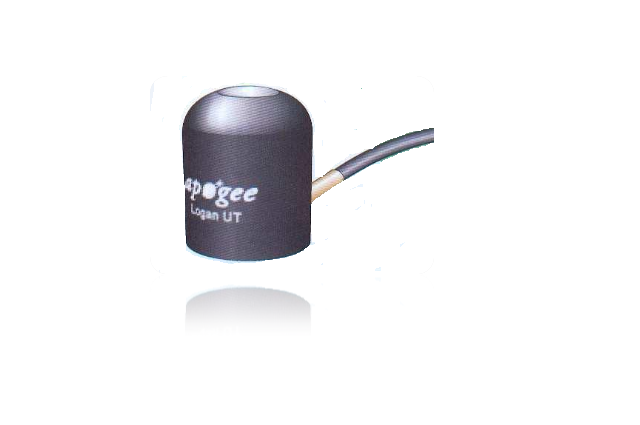

Amplified pyranometer
-Sensors available with 2.5 or 5.0 V output
-Designed for use with lower resolution dataloggers
-Self-cleaning domed head
-Potted solid for use in humid environments
Specifications
precision (PYR-PA) standard (PYR-SA)
Cosine response 45° zenith angle + 1% + 4%
75° zenith angle + 4% + 10%
Absolute accuracy + 5% + 8%
Uniformity + 3% + 5%
Repeatability + 1% + 2%
2.5 V option Output 0 to 2.5 V (2.2 V= full sunlight 1,100 Wmˉ²)
Input 2.5 to 5.5 VDC
Sensitivity Custom calibrated to exactly 0.50 Wmˉ² per mV
5.0 V option Output 0 to 5.0 V (4.4 V= full sunlight 1,100 Wmˉ²)
Input 5.0 to 5.5 VDC
Sensitivity Custom calibrated to exactly 0.25 Wmˉ² per mV
Operating environment -40 to 55°C; 0 to 100% relative humidity. Designed for
continuous outdoor use. Can be submerged under water
(with or without mounting screw).
|
|
|
